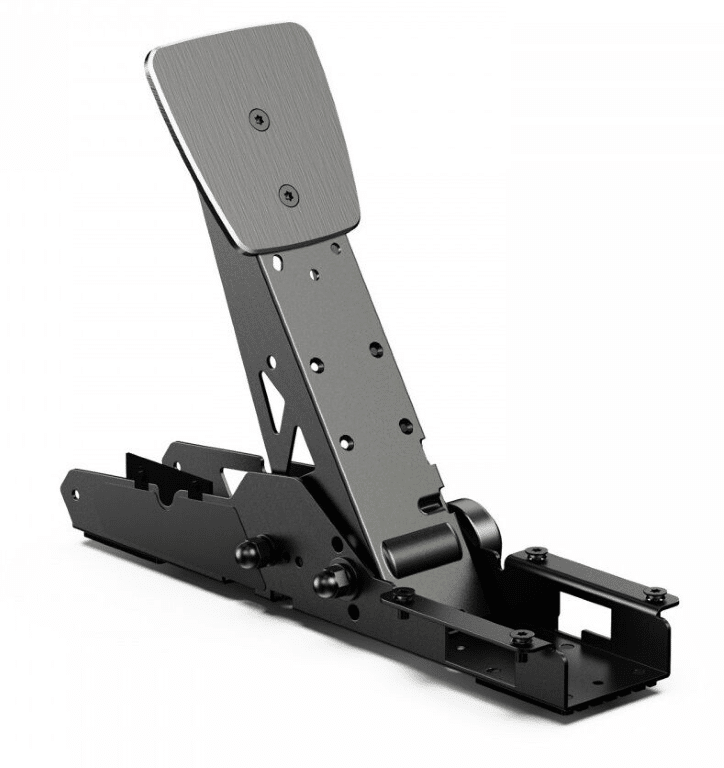

MOZA SRP Clutch Pedal Add-on

Description

MOZA SRP Clutch Pedal Add-on. BRAND NEW IN BOX.

AVAILABLE FROM SUPPLIER. PLEASE ALLOW 15 – 20 BUSINESS DAYS FOR DELIVERY. NO PICK UPS FOR THIS ITEM. THIS ITEM IS SHIPPED DIRECTLY TO CUSTOMER FROM THE AUCKLAND DISTRIBUTION CENTRE.

Description
FLOOR MOUNTED ORGAN TYPE ACCELERATOR PEDAL
The organ-type accelerator pedal allows the driver’s foot and pedal to follow the same trajectory. Which makes throttle control easier and more accurate.

HIGH PRECISION PRESSURE SENSOR WITH A MAXIMUM RANGE OF 75 KG
The MOZA SRP pedals utilize pressure sensors with a maximum range of 75KG. The pressure sensors will detect the braking pedal stopping pressure . A user can obtain the ideal braking force by controlling the amount of pressure applied on the braking pedal.

16-BIT HIGH PRECISION MAGNETIC ENCODER
The brake, clutch and throttle pedals all use 16-bit precision magnetic encoder with 65536 PPR resolution, a much higher resolution and more stable than a Hall sensor.

DIRECT CONNECTION WITH PC THROUGH USB PORT
The MOZA SRP pedals could connect to PC easily through a USB port and calibrate through the MOZA Pit House software.

MULTIPLE USE SCENARIOS
The anti-slip mat at the bottom prevents the pedal from slipping while being used without professional brackets, while being easily applied to more professional setups.

PEDAL TRAVEL SOFTWARE ADJUSTMENT
MOZA’s Pit House software allows for easy configuration of the pedals travels according to different needs.

Specifications:

Material: High-strength steel
Plate Material: CNC Aluminum Alloy
Color: Black
Braking Sensor: Pressure sensor+angle sensor
Max Range of Pressure Sensor: 75KG
Throttle Sensor: Angle sensor
Clutch Sensor: Angle sensor
Angle Sensor Resolution: 16-bit (65536ppr)
Pedal Spacing: Adjustable
Pedal Surface Height: Adjustable
Pedal Connection Port: USB direct
Pedal Travel Software Adjustment: Yes
Pedal Travel Reverse Function: Yes
Anti-Slipping Bottom: Yes
