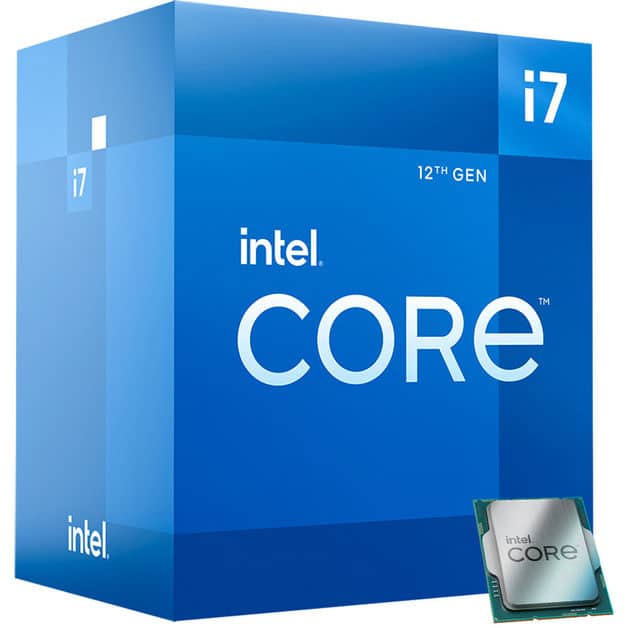

INTEL CORE I7 12700 12 CORES 20 THREADS 4.90 GHZ 25M CACHE LGA 1700 PROCESSOR

Description

INTEL CORE I7 12700 12 CORES 20 THREADS 4.90 GHZ 25M CACHE LGA 1700 PROCESSOR. New.

Please allow 15 – 20 business days for delivery.
Please allow 4 – 5 business days for click and collect orders for this product as it is being transferred from our suppliers. We will send you confirmation as soon as the order is ready for collection.

Power up your productivity, gaming, and content-creation experiences by installing the Intel Core i7–12700 2.1 GHz 12-Core LGA 1700 Processor into your desktop computer system. Built using a Hybrid Core architecture with the Intel 7 process, this 12th generation desktop processor’s 12 co­res combine the performance of four Efficient cores and eight 2.1 GHz Performance cores. The low-voltage Efficient cores handle background tasks for multitasking while the Performance cores provide speed for demanding applications and games. The built-in Intel Thread Director ensures that the two work seamlessly together by dynamically and intelligently assigning workloads to the right core at the right time to maximize performance. Additionally, this processor has a 4.9 GHz Turbo Boost Max 3.0 frequency with 25MB of cache for fast and reliable performance. The Core i7–12700 also includes support for up to PCI Express 5.0 and dual-channel DDR5 ECC memory at 4800 MHz to help run and multitask a variety of demanding applications.

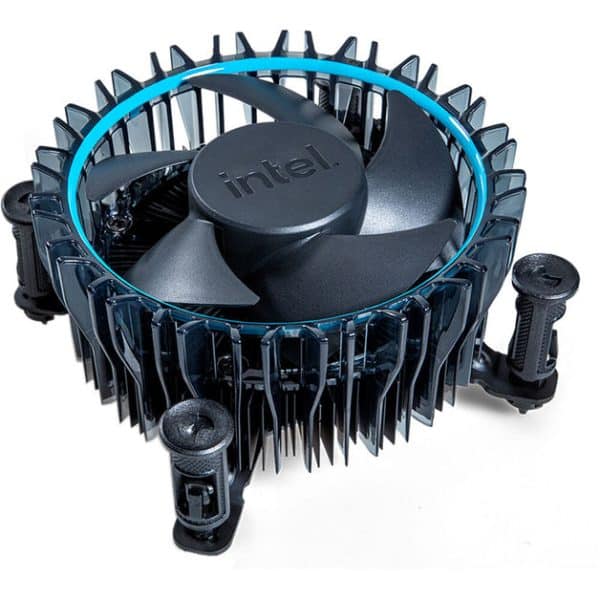

• The Core i7–12700 features integrated Intel UHD 770 Graphics and includes an Intel Laminar RM1 thermal solution.
• The processor is compatible with Intel LGA 1700 socket motherboards and is backed by a 3-year warranty.

FEATURES

• 12 Cores & 20 Threads
• 2.1 GHz P-Core Clock Speed
• 4.9 GHz Maximum Turbo Frequency
• LGA 1700 Socket
• 25MB Cache Memory
• Dual-Channel DDR5–4800 ECC Memory
• Integrated Intel UHD 770 Graphics
• Hybrid Core Architecture
• Includes Thermal Solution
• 12th Generation (Alder Lake)

SPECIFICATIONS

• Essentials:
  • Product Collection: 12th Generation Intel® Core i7 Processors
  • Code Name: Products formerly Alder Lake
  • Vertical Segment: Desktop
  • Processor Number: i7–12700
  • Launch Date: Q1’22
  • Lithography: Intel 7
• CPU Specifications:
  • Total Cores: 12
  • # of Performance-cores: 8
  • # of Efficient-cores: 4
  • Total Threads: 20
  • Max Turbo Frequency: 4.90 GHz
  • Intel® Turbo Boost Max Technology 3.0 Frequency: 4.90 GHz
  • Performance-core Max Turbo Frequency: 4.80 GHz
  • Efficient-core Max Turbo Frequency: 3.60 GHz
  • Performance-core Base Frequency: 2.10 GHz
  • Efficient-core Base Frequency: 1.60 GHz
  • Cache: 25 MB Intel® Smart Cache
  • Total L2 Cache: 12 MB
  • Processor Base Power: 65 W
  • Maximum Turbo Power: 180 W
• Memory Specifications:
  • Max Memory Size (dependent on memory type): 128 GB
  • Memory Types: Up to DDR5 4800 MT/s Up to DDR4 3200 MT/s
  • Max # of Memory Channels: 2
  • Max Memory Bandwidth: 76.8 GB/s
  • ECC Memory Supported: Yes
• Processor Graphics:
  • Processor Graphics: Intel® UHD Graphics 770
  • Graphics Base Frequency: 300 MHz
  • Graphics Max Dynamic Frequency: 1.50 GHz
  • Graphics Output: eDP 1.4b | DP 1.4a | HDMI 2.1
  • Execution Units: 32
  • Max Resolution (HDMI): 4096 × 2160 @ 60Hz
  • Max Resolution (DP): 7680 × 4320 @ 60Hz
  • Max Resolution (eDP – Integrated Flat Panel): 5120 × 3200 @ 120Hz
  • DirectX* Support: 12
  • OpenGL* Support: 4.5
  • Multi-Format Codec Engines: 2
  • Intel® Quick Sync Video: Yes
  • Intel® Clear Video HD Technology: Yes
  • # of Displays Supported: 4
  • Device ID: 0×4680
  • OpenCL* Support: 2.1
• Expansion Options:
  • Direct Media Interface (DMI) Revision: 4
  • Max # of DMI Lanes: 8
  • Scalability: 1S Only
  • PCI Express Revision: 5.0 and 4.0
  • PCI Express Configurations: Up to 1×16+4 | 2×8+4
  • Max # of PCI Express Lanes: 20
• Package Specifications:
  • Sockets Supported: FCLGA1700
  • Max CPU Configuration: 1
  • Thermal Solution Specification: PCG 2020C
  • TJUNCTION: 100°C
  • Package Size: 45.0 mm x 37.5 mm
• Advanced Technologies:
  • Intel® Gaussian & Neural Accelerator: 3
  • Intel® Thread Director: Yes
  • Intel® Deep Learning Boost (Intel® DL Boost): Yes
  • Intel® Optane Memory Supported: Yes
  • Intel® Speed Shift Technology: Yes
  • Intel® Turbo Boost Max Technology 3.0: Yes
  • Intel® Turbo Boost Technology: 2
  • Intel® Hyper-Threading Technology: Yes
  • Intel® 64: Yes
  • Instruction Set: 64-bit
  • Instruction Set Extensions: Intel® SSE4.1 | Intel® SSE4.2 | Intel® AVX2
  • Idle States: Yes
  • Enhanced Intel SpeedStep® Technology: Yes
  • Thermal Monitoring Technologies: Yes
  • Intel® Volume Management Device (VMD): Yes
• Security & Reliability:
  • Intel vPro® Platform Eligibility: Yes
  • Intel vPro® Enterprise Platform Eligibility: Yes
  • Intel vPro® Essentials Platform Eligibility: Yes
  • Intel® Threat Detection Technology (TDT): Yes
  • Intel® Active Management Technology (AMT): Yes
  • Intel® Standard Manageability (ISM): Yes
  • Intel® One-Click Recovery: Yes
  • Intel® Hardware Shield Eligibility: Yes
  • Intel® AES New Instructions: Yes
  • Secure Key: Yes
  • Intel® OS Guard: Yes
  • Intel® Trusted Execution Technology: Yes
  • Execute Disable Bit: Yes
  • Intel® Boot Guard: Yes
  • Mode-based Execute Control (MBEC): Yes
  • Intel® Control-Flow Enforcement Technology: Yes
  • Intel® Total Memory Encryption – Multi Key: Yes
  • Intel® Total Memory Encryption: Yes
  • Intel® Stable IT Platform Program (SIPP): Yes
  • Intel® Virtualization Technology with Redirect Protection (VT-rp): Yes
  • Intel® Virtualization Technology (VT-x): Yes
  • Intel® Virtualization Technology for Directed I/O (VT-d): Yes
  • Intel® VT-x with Extended Page Tables (EPT): Yes
